Features
Shell implant has two different diameter options, 15 mm and 18 mm.
The plate opens from 7mm to 12mm, allowing a wide range of degrees of extension.
15 mm Shell Plate has a maximum opening capacity of 23 °, and 18 mm Shell plate has a maximum angling capacity of 18 °.
When necessary, the plate allows fixation with 2 locking screws.

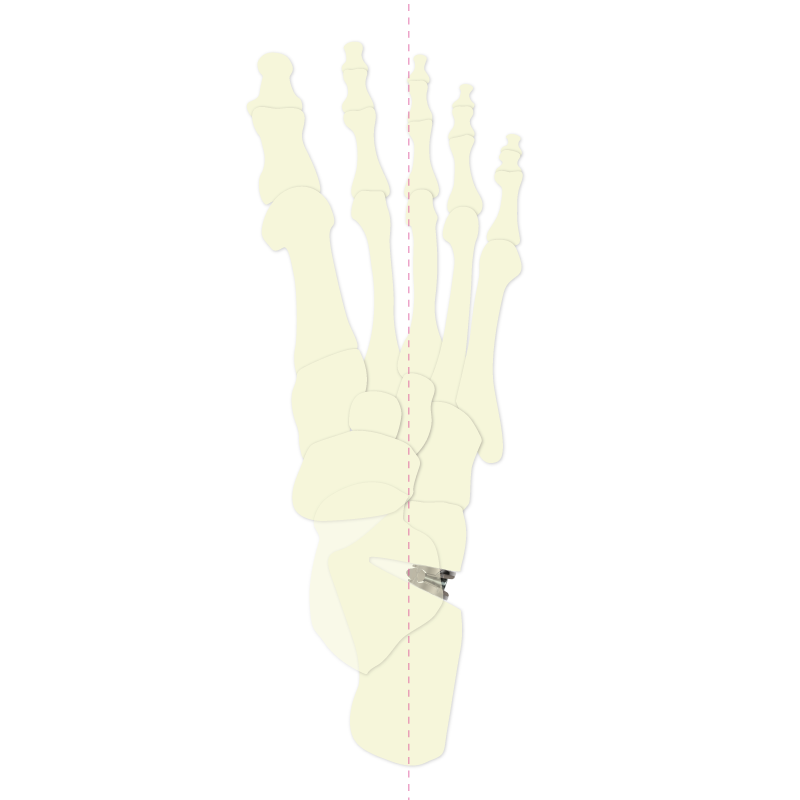

It allows the expansion of the osteotomy space with the help of the rotation of the bolt in its center.
Indications
Pes Planovalgus deformity,Mild/Moderate hindfoot valgus,
Posterior facet subluxation
Sizes
Shell Plate diameter options: 15 mm | 18 mm
For detailed information, please visit: www.peditst.com/product/shell-calcaneus/
